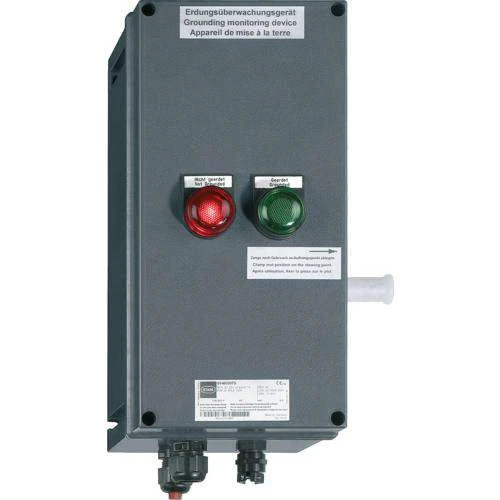

Stahl Grounding monitoring device Glass fibre reinforced polyester resin

The grounding monitoring device ensures that tank containers, drums, road tankers, rail cars and IBCs are correctly electrostatically grounded during the loading of flammable liquids and powder. The device provides a conductive connection to the ground and monitors in parallel the quality of the electrostatic grounding. This guarantees that the electrostatic charge remains at a safe level and that no explosion hazard is generated by uncontrolled energy discharge. Grounding monitoring device, explosion-protected, Type: 8146/5-V73, Nominal current: 100 mA, Nominal voltage range DC: 18,0 … 31,2 V, Number of channels: 1, Enclosure material: Glass fibre reinf. poly. resin, Dimensions (W x H x D): 374 x 230 x 190 mm, Application range (zones): 1, 2, 21, 22, Degree of protection (IP): IP66, min. ambient temperature: -20 °C, max. ambient temperature: +55 °C, Gas explosion protection: II 2 (1) G Ex db eb [ia Ga] IIC T4 Gb, Dust explosion protection: II 2 (1) D Ex tb [ia Da] IIIC T8
