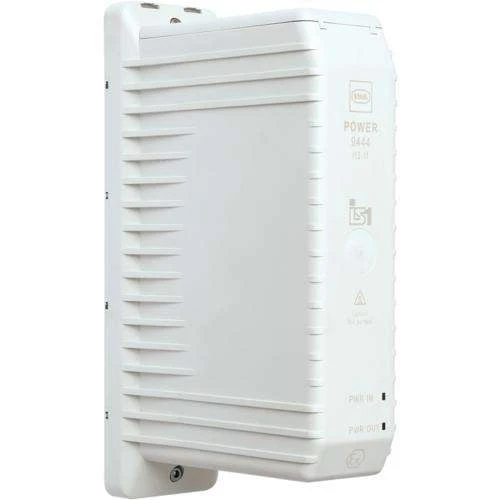

Stahl Remote I/O IS1 Ethernet power module

The series 9444/12 power module supplies up to eight IS1+ I/O modules, including the connected field circuits, with intrinsically safe energy. A 24 V DC external power supply is required. The power module can be replaced while the system is in operation and without having to disconnect the power supply (i.e. hot swapped). Remote I/O IS1, Ethernet power module For Zone 1, Type: 9444/12-11, Application range (zones): 1 2, Nominal voltage: 24 V DC, Current con. (w/o I/O modules): 0.36 A at 24 V DC, Current con. (w 8 I/O modules): Approx. 2.6 A at 24 V DC, Auxiliary power: Via base 9492/12-11-..., min. ambient temperature: -20°C, max. ambient temperature: +65°C, Gas explosion protection, II 2 (1) G Ex d e [ia Ga] IIC T4 Gb, Dust explosion protection: II (1) D [Ex ia Da] IIIC, For further information, see: r-stahl.com WebCode 9444A
